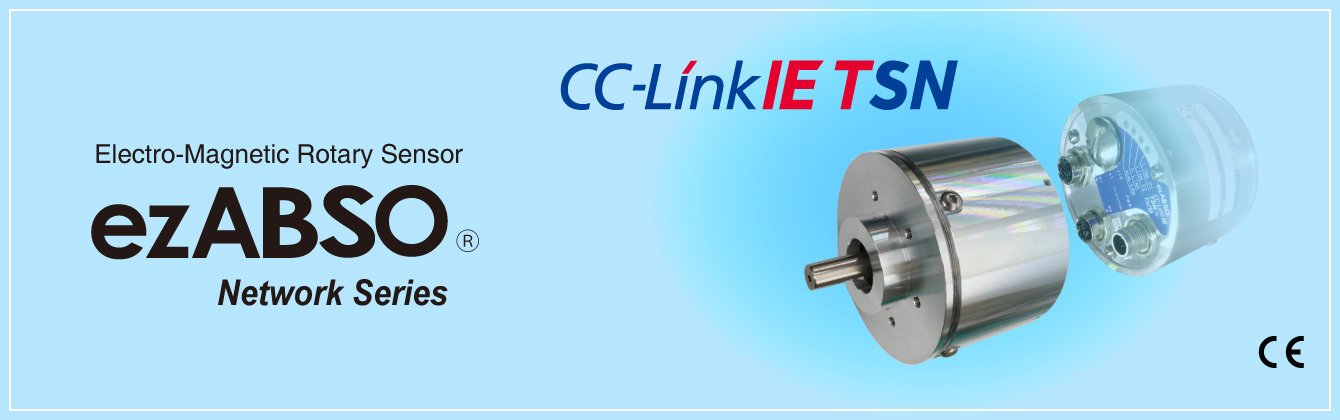

Electro-Magnetic Rotary Sensor ezABSO ® Network Series CC-Link IE TSN

Description

Electro-Magnetic Rotary Sensor ezABSO Network Series CC-Link IE TSN

ezABSO® is a rotary encoder which adopts the principle of the electromagnetic induction method.
A converter is incorporated, and the absolute position and speed are detected by only ezABSO®.

Download　　　Contact

Advantage

CC-Link IE TSN Class B Supported

  • ezABSO® supports the industrial Ethernet "CC-Link IE TSN" Class B.
  • The communication speed is 1Gbps! It achieves control which fully supports the synchronous communication.

Long-life Design

  • The detection part is a non-contact type. In addition, it can be used for a long term since no life-limited parts, such as electrolytic capacitors, are used.

Absolute Encoder

  • ezABSO® adopts the absolute position detection method with no battery. The total number of turns is 8,778.
  • Since the value is detected in absolute value, the position can be detected correctly even if moved when the power supply is turned OFF.

High Division Number

  • The number of divisions per turn, 262,144, is achieved.

High Durability

  • ezABSO® provides high durability, vibration resistance (200 m/s2), and shock resistance (2000 m/s2).

Configuration

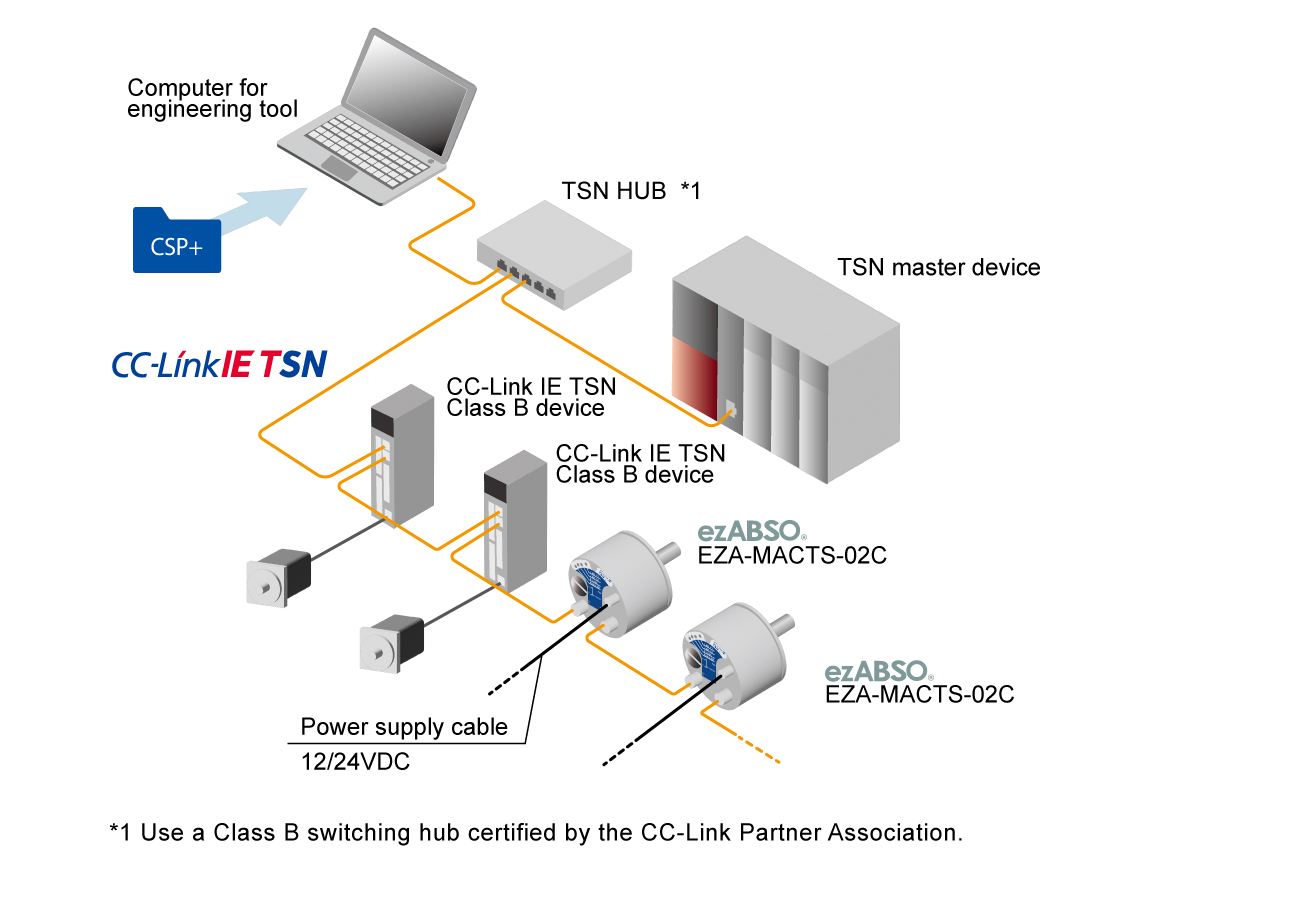

ezABSO ® Network Series CC-Link IE TSN Configuration

Model coding

EZA-MACTS-02C

Specification

General Specification

Item Specification
Power supply voltage 10.8 to 28.8VDC (including ripple)
Current consumption 340mA or less (at 12VDC)
170mA or less (at 24VDC)
Ambient operating temperature -20 to +75°C (no condensation)
Ambient storage temperature -20 to +90°C (no condensation)
Mass Approx. 0.6kg

Mechnical Specification

Item Specification
Position detection method Electromagnetic induction method
Protection rating IP66 *Shaft seal part: IP64 (during the shaft rotation)
Permissible mechanical speed 6,000r/min (continuous operation)
Linearity error 0.03° (±0.015°)

Function Specification

Item Specification
Total number of turns 8,778
Total number of divisions Max. 2,301,100,032 divisions (8,778 turns x 262,144 per turn)
Factory setting: 575,275,008 divisions (8,778 turns x 65,536 per turn)
Internal updating cycle Approx. 250μs (position data, speed data)
Error detection CPU error, Sensor error, Memory error, Hardware error, Switch error,
Power supply voltage alarm, Internal temperature alarm, Rotation speed alarm,
Preset data setting alarm, IP address setting change alarm, IP address setting alarm,
IP address duplicate alarm, Cyclic transmission size alarm
Device operation PRESET, ERROR CLEAR
Event log 64 events can be recorded. *Events can be viewed with the Web server function.
Monitor function It can be connected to ezSCOPE.
Monitor LED RUN / ERR: EZA-MACTS status, D LINK: Cyclic transmission status,
LINK P1: PORT1 sending/receiving status, LINK P2: PORT2 sending/receiving status
IP address setting IP / STATION switch: x 16, x 1
Functional parameter Position data increase direction, Current position preset function selection,
Scaling function selection, Scaling data, Sensor low-pass filter,
Sensor median filter
Parameter setting method Auto-setting (parameter setting to the master station by the engineering tool)
Parameter write by the engineering tool
Parameter setting by the Web server

Communication Specification

Item Specification
Station type Remote station
Number of communication ports 2 (connector: M12)
Communication speed 1Gbps (1000BASE-T, full-duplex)
Communication protocol CC-Link IE TSN
Certification class Class B
Network topology Line topology, Star topology, Ring topology,
Mixture of line and star topologies, Mixture of ring and star topologies
Communication cycle time Min. 125μs (without synchronization)
Min. 250μs (when using the network synchronous communication) *2
Device type Sensor (type code: 0x0030)
Recommended cable Cat.5e or higher, shielded (STP) straight cable
Cable length Between nodes: Max. 100m
IP / STATION address 1 to 254
IP version IPv4
IP address setting Switch setting, Storage memory setting
Multicast filter Supported
Cyclic Transmission RX/RY points: 32 points
RWr/RWw points: 16 points
Monitor function By the Web server function.

*2 It cannot communicate with Mitsubishi Electric Corporation's FX5-SSC-G and FX5-CCLGN-MS by using the network synchronous communication.

Dimensions

  • PDF DownloadEZA-MACTS-02C
