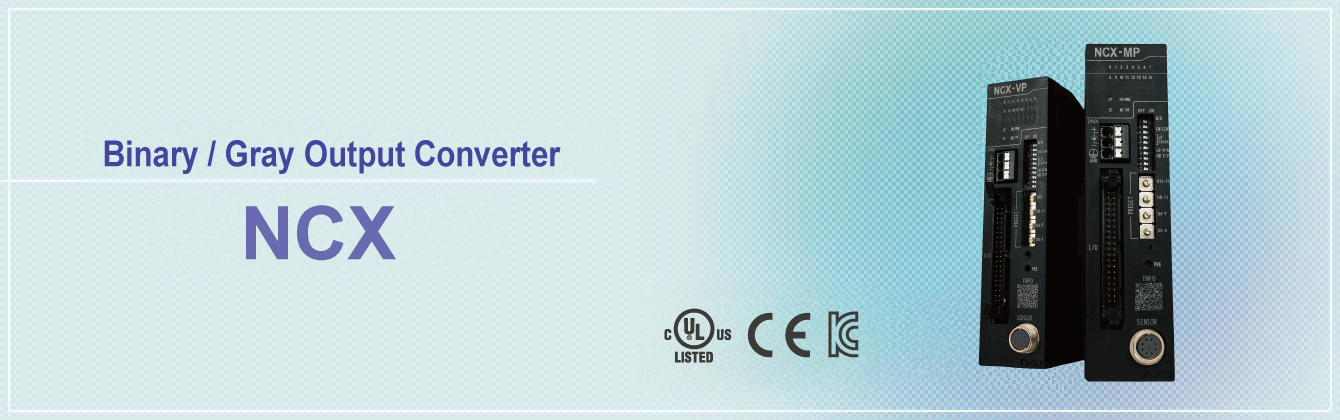

Binary / Gray Output Converter NCX

Description

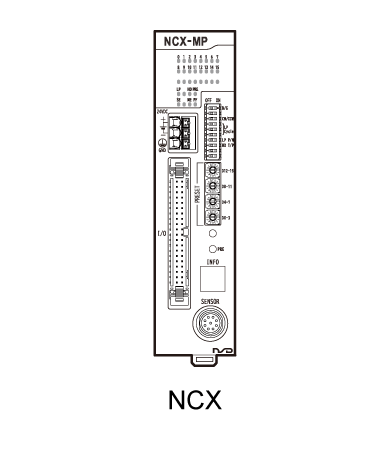

Binary / Gray Output Converter NCX

General purpose of digital binary or gray code output converter

Download　　　Contact

ADVANTAGE

Achieves a Wide Field of View Regardless of the Installation Location

LED lights can be accurately read from any angle.

Switchable Wiring for Sink (NPN) / Source (PNP) Connections

Previously, it was necessary to select the model according to the connection type, but now the device can support both NPN and PNP simply by changing the wiring.

Switch-Selectable Binary/Gray Code Output

Output code can be easily selected using a switch.

Position Data Easily Configurable

Position data can be easily modified by selecting any value on the rotary switch and pressing the switch.

Instruction Manuals and Serial Numbers Can Be Checked on Mobile Devices

Product information and the instruction manual can be easily checked by scanning the QR code on the front of the unit with a mobile device.

Model coding

NCX-[1]

[1]Applicable sensor
Code ABSOCODER sensor
VP VRE-P028/VRE-P062
V2 VRE-16TS062
MP MRE-32SP062/MRE-G□SP062(□ : 64/128/160/256/320)
LW VLS-256PWB/VLS-512PWB/VLS-1024PW
LY VLS-512PYB/VLS-1024PYB/VLS-2048PY

Contact us about other specifications.

ABSOCODER Basic Configuration

  • Position Sensor
    •
    • Single Turn Rotary Position Sensor
    •
    •
    • Single Turn Rotary Position Sensor
    •
    •
    • Multi Turn Rotary Position Sensor
    •
    •
    • Linear Position Sensor
  • Cable
    • Cable 3P-S-0102/3P-RBT-0102
    • Cable 3S-RBT-0103/3S-RBT-0102
    • Cable 4P-S-0102/4P-RBT-0102
    • Cable 4P-RBT-0103/4P-S-0102/4P-RBT-0102
  • Converter / Controller
    • NCX

Specification

General specification

Item Specification
Power supply voltage 24VDC
Permissible power voltage range 20.4 to 28.8VDC (including ripple)
Power consumption 7W or less
Insulation resistance 20MΩ or more between external DC power terminals and ground (by 500 VDC insulation resistance tester)
Withstand voltage 500 VAC, 60Hz for 1 minute between external DC power terminal and ground
Vibration resistance 20m/s2 10 ～ 500Hz, 10cycles of 5 minutes in 3 directions,
conforms to IEC60068-2-6 standard
Ambient operating temperature 0 ～ +55℃ (No freezing) (Surrounding air temperature rating of 55℃ maximum)
Ambient operating humidity 5 ～ 95 %RH (No condensation)
Ambient operating environment Free from corrosive gases and excessive dust
Ambient storage temperature -25〜+70℃
Grounding Must be securely grounded (ground resistance of 100 ohm or less)
Construction Inside control cabinet
Mounting Select from two-screw mount or DIN rail mount.
Can be attached in either way.
Outside dimension (mm) 39(W)×155(H)×93(D) Refer to dimensions for details.
Mass Approx. 0.3kg

Performance Specification

Item Specification
Converter model NCX-VP NCX-V2 NCX-MP NCX-LW NCX-LY
Number of detection axes 1
Position data sampling time 0.2ms 0.1ms 0.1ms 0.1ms 0.1ms
Status
output signal		 Latch pulse:
Position data
reading timing		 1 point
Sensor
disconnected
error		 1 point
Error 2 points 1 point 2 points 2 points 2 points
Input signals Preset: 1 point
Hold: 1 point
Preset value switch
(on front panel)		 Preset (position data setting)
Preset button
(on front panel)
Function
selector
switch
(on front panel)		   Output data setting (binary code / gray code): 1 point
  Position data increase / decrease direction setting (CW / CCW): 1 point
  Latch pulse polarity setting: 1 point
Position
data
update
cycle		 High-speed - 0.1ms 0.1ms 0.1ms 0.1ms
0.2ms 0.2ms 0.2ms 0.2ms 0.2ms
0.4ms 0.4ms 0.4ms 0.4ms 0.4ms
0.8ms 0.8ms 0.8ms 0.8ms 0.8ms
1.6ms 1.6ms 1.6ms 1.6ms 1.6ms
3.2ms - - - -
Low-speed 12.8ms 12.8ms 12.8ms 12.8ms 12.8ms
25.6ms 25.6ms 25.6ms 25.6ms 25.6ms
51.2ms 51.2ms 51.2ms 51.2ms 51.2ms
HOLD format Transparent format
PC synchro format
Monitor LED Position data, Latch Pulse output, Hold input status, Preset input status
Sensor disconnected error, Hardware error, Memory error, Low power error

Number of divisions, resolution, and sensor cable length of the ABSOCODER sensor

VRE Single-turn type

Item Specification
Converter model NCX-VP NCX-V2
Output code Binary / Gray
Applicable sensor VRE-P028, VRE-P062 VRE-16TS062
Total number of turns 1
Number of divisions 8192(213) 65536(216)
Max. sensor cable length Standard(S) 100m -
Robotic(RBT) 100m 100m

MRE Multi-turn type

Item Specification
Converter model NCX-MP
Output code Binary / Gray
Applicable sensor MRE-
32SP		 MRE-
G64SP		 MRE-
G128SP		 MRE-
G160SP		 MRE-
G256SP		 MRE-
G320SP
Total number of turns 32 64 128 160 256 320
Divisions/Turn 2048 1024 512 409.6 256 204.8
Total number of divisions 65536(216)
Max. sensor cable length Standard(S) 100m 100m
Robotic(RBT) 40m 70m

VLS Linear type

Item Specification
Converter model NCX-LW NCX-LY
Output code Binary / Gray
Applicable sensor VLS-
256PWB		 VLS-
512PWB		 VLS-
1024PW		 VLS-
512PYB		 VLS-
1024PYB		 VLS-
2048PY
Resolution 0.00781
mm		 0.0156
mm		 0.03125
mm		 0.00781
mm		 0.0156
mm		 0.03125
mm
Total number of divisions 32768(215) 65536(216)
Max. sensor cable length Standard(S) 100m 60m
Robotic(RBT) 50m 30m

I/O spcification

Item Specification
Converter model NCX-VP NCX-V2 NCX-MP NCX-LW NCX-LY
Input Input signals PRE (Preset): 1 point
HD (Hold): 1 point
Input circuit DC input (available for both sink / source connections)
Isolation method Photo-coupler
Input logic Negative logic (sink connection) / Positive logic (source connection)
Rated input voltage 12 / 24VDC (27VDC max.)
Rated input current 10mA (24VDC)
ON voltage 10VDC or more
OFF voltage 4VDC or less
Output Output signals Position data D0 ～ D12: 13points D0 ～ D15: 16points D0 ～ D15: 16points D0 ～ D14: 15points D0 ～ D15: 16points
Latch pulse:
Position data
reading timing		 LP: 1point LP: 1point LP: 1point LP: 1point LP: 1point
Sensor
disconnected
error		 SE: 1point SE: 1point SE: 1point SE: 1point SE: 1point
Error ERR, ERR:
2points		 ERR:
1point		 ERR, ERR:
2points		 ERR, ERR:
2points		 ERR, ERR:
2points
Output circuit Open drain (available for both sink / source connections)
Isolation method D0 ～ D15, LP, SE: Digital Isolator
ERR, ERR: Photo-coupler
Output logic D0 ～ D15: Negative logic (sink connection) / Positive logic (source connection)
SE: Positive logic (sink connection) / Negative logic (source connection)
ERR: Negative logic (sink connection) / Positive logic (source connection)
ERR: Positive logic (sink connection) / Negative logic (source connection)
Output polarity LP: Switch by the function switch
Rated load voltage 5 / 12 / 24VDC (30VDC max.)
Max. load current D0 ～ D15, LP, SE: 50mA /point
ERR, ERR: 100mA /point
Max. voltage drop when ON 0.8V

Dimensions
